Mesin Es IndustriIndustrial Ice Equipment

Solusi Produksi Es untuk Bisnis & IndustriIndustrial Ice Production Solutions

Tube Ice Machine 1–20 Ton, Mesin Es Balok dan Cold Storage untuk kebutuhan perikanan, seafood, F&B, cold chain, distribusi es dan proyek industri.

Tube Ice Machines from 1–20 Ton, Block Ice Machines and Cold Storage for fisheries, seafood, F&B, cold chain, ice distribution and industrial projects.

Lihat ProdukExplore Products →WhatsApp Sales

1 Ton / 24hBP10-ICM • Tube IceBP10-ICM • Tube Ice

1–20 TonPilihan kapasitas Tube IceTube Ice capacities

380V / 50HzKonfigurasi industri tersediaIndustrial configurations

IndonesiaSupplier & sourcingSupplier & sourcing

ExportInquiry internasionalInternational inquiries

SINAPEUL PRODUCT RANGE

Mesin Es & Cold StorageIce Machines & Cold Storage

Pilihan produk disusun berdasarkan informasi produk yang ditampilkan pada referensi Mesin Es Kristal. Spesifikasi final dikonfirmasi kembali sebelum quotation dan order.Product information is based on the referenced Mesin Es Kristal product listing. Final specifications are reconfirmed before quotation and order.

1 TON / 24 HOURS

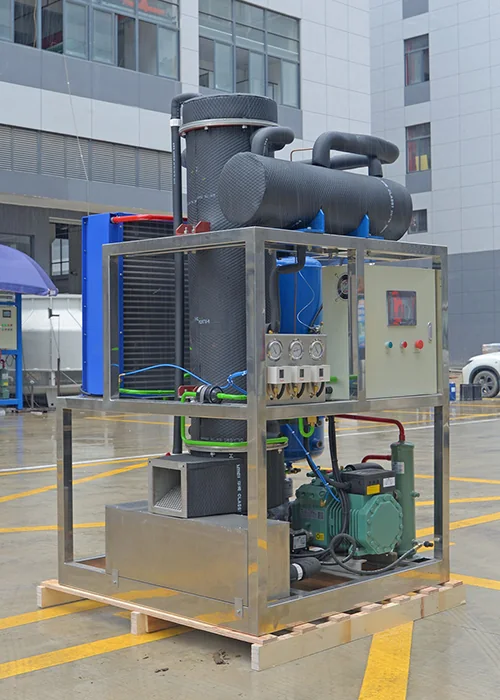

Tube Ice Machine 1 Ton

Mesin es pipa untuk kebutuhan usaha dan produksi harian.Tube ice machine for commercial daily production.

1 TonOutput / 24h

6.8 kWTotal Power

R404A / R22Refrigerant

1,250×1,200×1,910mm

Detail spesifikasiTechnical details

Output	1 Ton / 24 jam
Kapasitas	5.8 kW
Total Power	6.8 kW
Compressor Power	4.6 kW
Cooling	Air / Udara
Operating Weight	1,000 kg
Dimensi	1,250 × 1,200 × 1,910 mm

2 TON / 24 HOURS

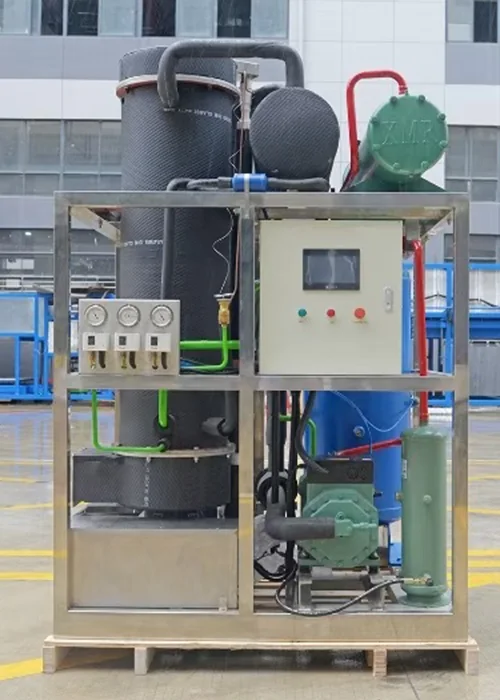

Tube Ice Machine 2 Ton

Untuk usaha skala menengah dengan output stabil.For medium-scale businesses requiring stable output.

2 TonOutput / 24h

9.56 kWTotal Power

R404A / R22Refrigerant

1,450×1,250×2,180mm

Technical details

Output	2 Ton / 24 jam
Kapasitas	12.3 kW
Total Power	9.56 kW
Compressor Power	6.9 kW
Cooling	Air / Udara
Operating Weight	1,130 kg
Dimensi	1,450 × 1,250 × 2,180 mm

3 TON / 24 HOURS

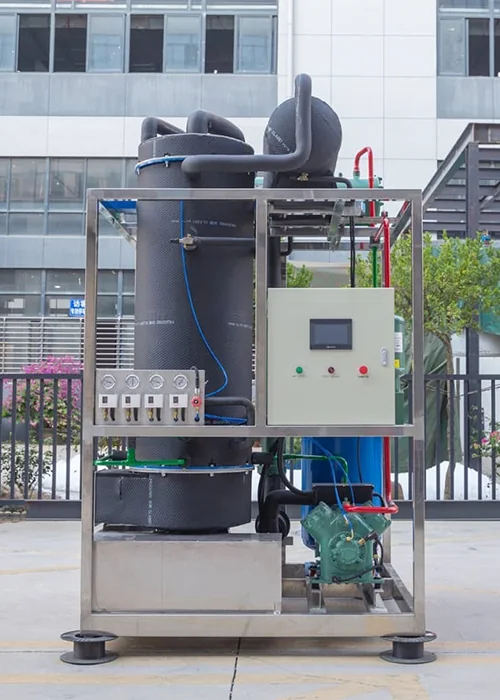

Tube Ice Machine 3 Ton

Kapasitas produksi sedang dengan konfigurasi industri.Medium production capacity with industrial configuration.

3 TonOutput / 24h

10.41 kWTotal Power

7.8 kWCompressor

1,450×1,400×2,390mm

Technical details

Output	3 Ton / 24 jam
Kapasitas	18.3 kW
Total Power	10.41 kW
Compressor Power	7.8 kW
Cooling	Air / Udara
Operating Weight	1,350 kg
Dimensi	1,450 × 1,400 × 2,390 mm

5 TON / 24 HOURS

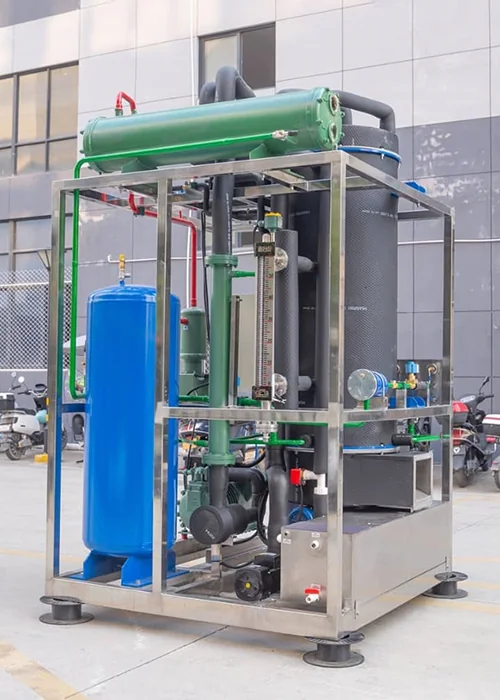

Tube Ice Machine 5 Ton

Untuk bisnis dengan kebutuhan es besar setiap hari.For businesses with high daily ice demand.

5 TonOutput / 24h

16.5 kWTotal Power

12.5 kWCompressor

1,600×1,600×2,680mm

Technical details

Output	5 Ton / 24 jam
Kapasitas	30.1 kW
Total Power	16.5 kW
Compressor Power	12.5 kW
Cooling	Air / Udara
Operating Weight	1,750 kg
Dimensi	1,600 × 1,600 × 2,680 mm

10 TON CLASS

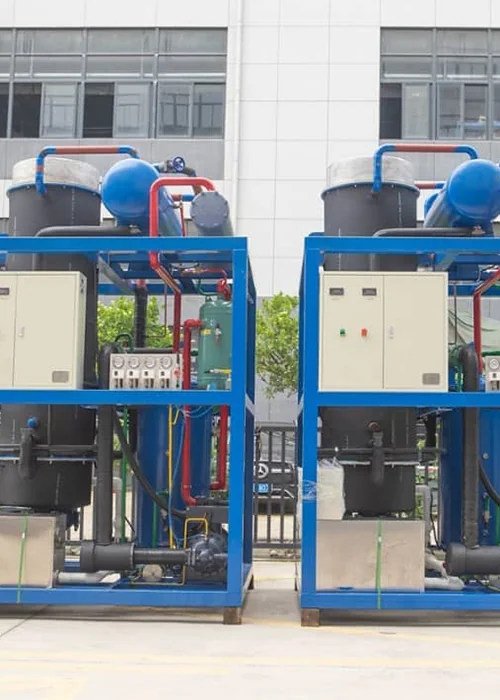

Tube Ice Machine 10 Ton

Mesin kelas industri untuk kebutuhan produksi tinggi.Industrial-class machine for high production requirements.

10 Ton*Product class

30.6 kWTotal Power

22.5 kWCompressor

2,750 kgWeight

Technical details

Listing output	8 Ton / 24 jam*
Kapasitas	55.3 kW
Total Power	30.6 kW
Compressor Power	22.5 kW
Refrigerant	R404A / R22
Cooling	Air / Udara
Operating Weight	2,750 kg
Dimensi	2,100×1,600×2,040 mm + 1,720×1,400×2,800 mm

*Data kapasitas/output mengikuti listing referensi dan perlu dikonfirmasi saat quotation.

20 TON CLASS

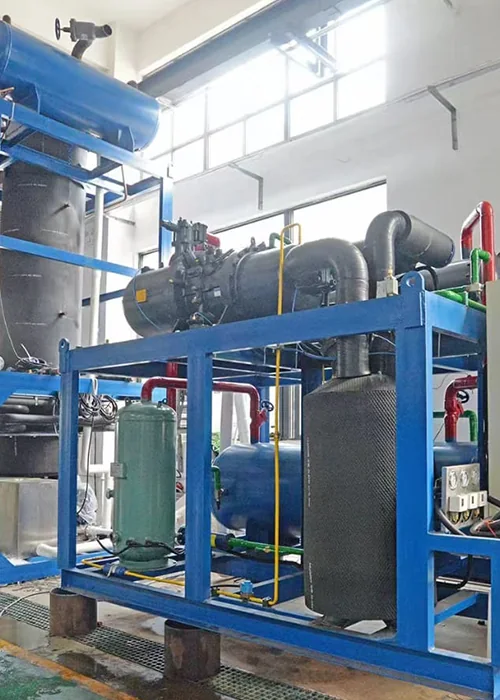

Tube Ice Machine 20 Ton

Untuk pabrik dan pusat distribusi skala besar.For large-scale plants and distribution centers.

20 Ton*Product class

59.45 kWTotal Power

48.75 kWCompressor

2,860 kgWeight

Technical details

Listing output	10 Ton / 24 jam*
Kapasitas	57.9 kW
Total Power	59.45 kW
Compressor Power	48.75 kW
Refrigerant	R404A
Cooling	Air / Udara
Operating Weight	2,860 kg
Dimensi	2,600×2,200×2,100 mm + 1,700×1,700×3,340 mm

*Data kapasitas/output mengikuti listing referensi dan perlu dikonfirmasi saat quotation.

BLOCK ICE

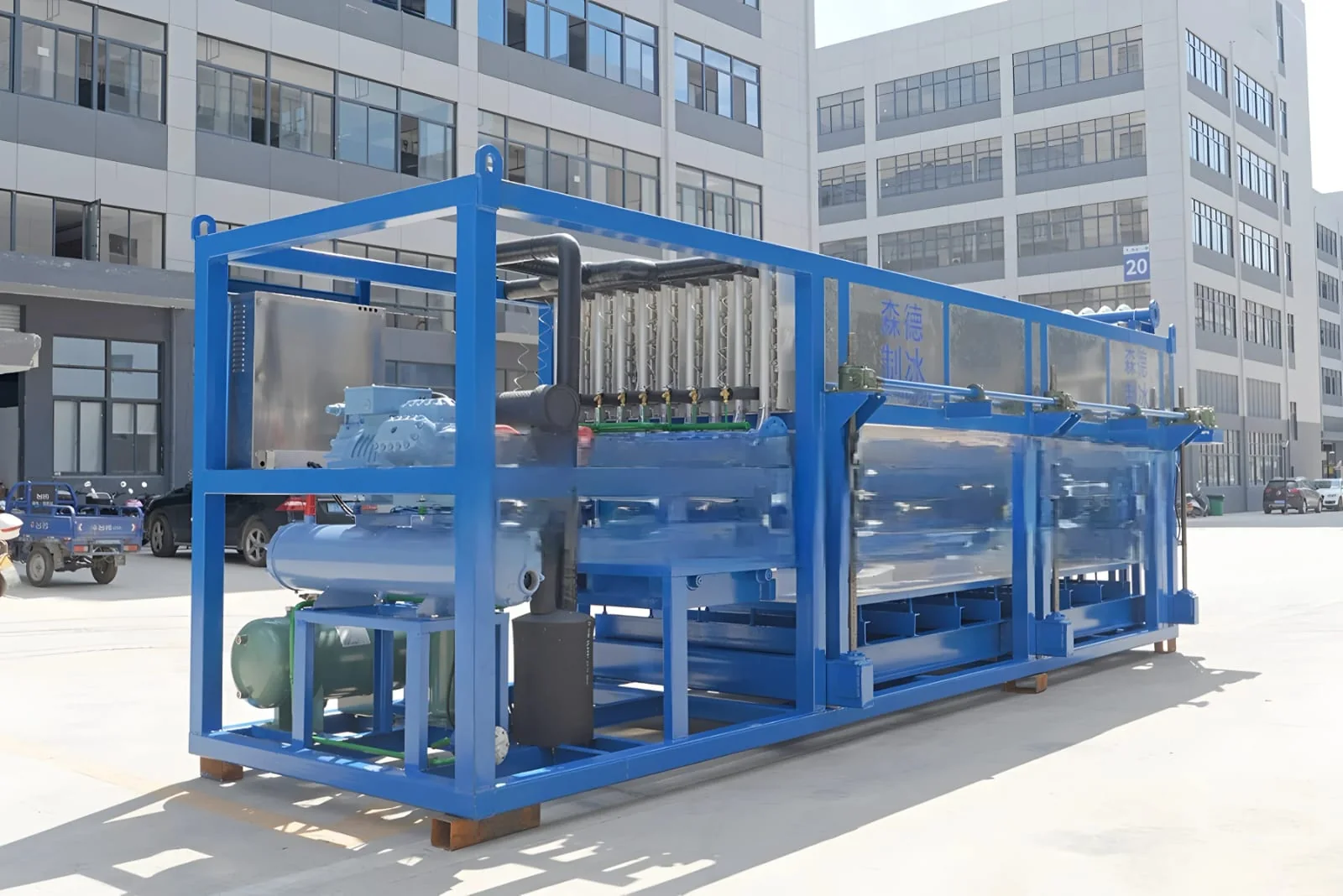

Mesin Es BalokBlock Ice Machine

Solusi es padat untuk perikanan, seafood, penyimpanan dan distribusi.Solid ice solution for fisheries, seafood, storage and distribution.

IndustrialApplication

CustomCapacity

PLCOption

5–100 kg*Block size*

Detail produkProduct details

Mesin es balok digunakan untuk menghasilkan es padat dengan ukuran yang dapat disesuaikan. Cocok untuk industri perikanan, seafood, food processing dan kebutuhan cold chain.Block ice machines produce solid ice in configurable sizes. Suitable for fisheries, seafood, food processing and cold-chain operations.

*Ukuran dan kapasitas bersifat konfigurasi dan harus dikonfirmasi berdasarkan model yang dipilih.

COLD CHAIN

Cold Storage

Ruang pendingin untuk menyimpan es, seafood, daging, buah, sayur dan bahan baku.Temperature-controlled storage for ice, seafood, meat, fruit, vegetables and raw materials.

0–5°CChilled room*

≤ -18°CBlast freezer*

CustomRoom size

IndustrialApplication

Detail produkProduct details

Chilled Room	Approx. 0–5°C*
Blast Freezer	Approx. -18°C or lower*
Use	Meat, seafood, fruit, vegetables, industrial raw materials
Room Size	Customized to project

*Rentang suhu mengikuti deskripsi referensi; desain akhir mengikuti kebutuhan produk dan engineering.

FEATURED • BP10-ICM

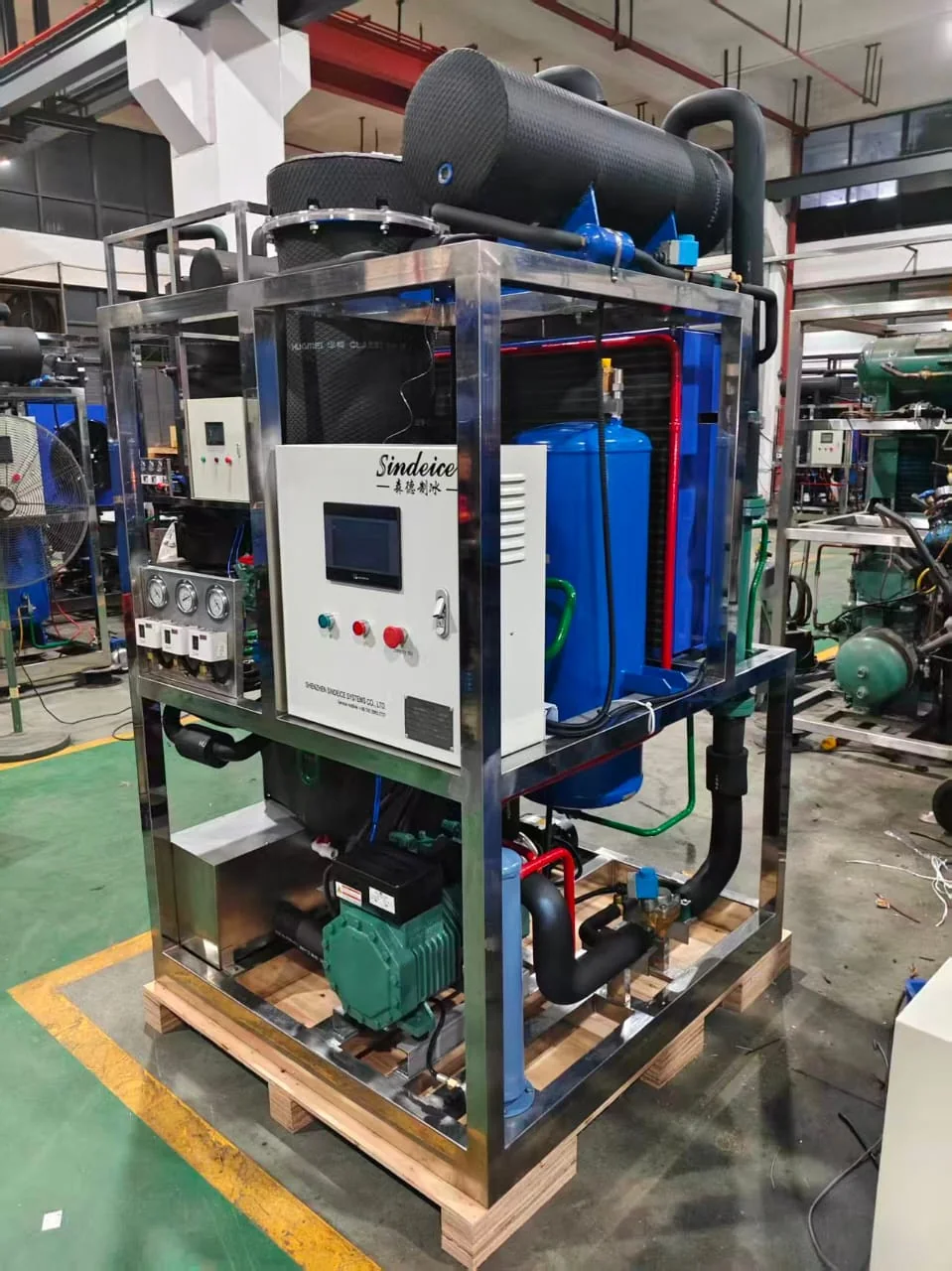

Tube Ice Machine 1 Ton1 Ton Tube Ice Machine

Model BP10-ICM pada data supplier yang Anda lampirkan memiliki kapasitas 1.000 kg/24 jam, pilihan diameter 22, 28 dan 35 mm, compressor Bitzer 5 HP dan tube mold Stainless Steel 304.The BP10-ICM supplier data you provided specifies 1,000 kg/24h capacity, 22/28/35 mm tube diameters, a 5 HP Bitzer compressor and Stainless Steel 304 tube mold.

1,000 kg / 24h

22 / 28 / 35 mm

Bitzer 5 HP

Stainless Steel 304

380V / 50Hz

6,000 W listed

Minta Quotation BP10-ICMRequest BP10-ICM Quotation

APPLICATIONS

Untuk berbagai kebutuhan pendinginanBuilt for multiple cooling applications

🐟

Perikanan & SeafoodFisheries & Seafood

Penanganan, penyimpanan dan distribusi ikan serta seafood.Fish and seafood handling, storage and distribution.

🥤

Food & Beverage

Restoran, hotel, katering, minuman dan bisnis F&B.Restaurants, hotels, catering, beverage and F&B businesses.

🧊

Distributor EsIce Distribution

Produksi dan distribusi es untuk pasar lokal maupun proyek.Ice production and distribution for local markets and projects.

🥩

Food ProcessingFood Processing

Mendukung kebutuhan pendinginan bahan pangan sesuai SOP.Supports food-processing cooling requirements according to SOP.

🚢

Cold ChainCold Chain

Integrasi mesin es dan cold storage untuk rantai dingin.Integration of ice machines and cold storage for cold-chain operations.

🏭

IndustriIndustrial

Solusi kapasitas besar untuk pabrik dan pusat distribusi.High-capacity solutions for plants and distribution centers.

INDONESIA • EXPORT

Siap untuk buyer Indonesia maupun internasional.Ready for Indonesian and international buyers.

SINAPEUL membantu sourcing, product inquiry dan quotation B2B. Untuk export, detail listrik, packing, tujuan pelabuhan, Incoterms, quantity dan spesifikasi final dikonfirmasi sebelum order.SINAPEUL supports B2B sourcing, product inquiries and quotations. For export, electrical standards, packing, destination port, Incoterms, quantity and final specifications are confirmed before order.

✓ B2B Quotation

✓ Export Inquiry

✓ Packing & Shipment

✓ Destination Port

✓ Electrical Standard

✓ Supplier Coordination

Minta Export QuotationRequest Export Quotation

Request QuotationRequest a Quotation

FAQ

Pertanyaan umumFrequently Asked Questions

Apakah bisa export?Do you support export?

Ya. Kami menerima inquiry internasional dan dapat membantu koordinasi quotation, packing dan kebutuhan pengiriman.Yes. We accept international inquiries and can coordinate quotation, packing and shipping requirements.

Apakah harga ditampilkan?Is pricing displayed?

Belum. Mesin industri umumnya membutuhkan quotation berdasarkan kapasitas, konfigurasi, listrik, packing dan tujuan.Not at this stage. Industrial machines require quotations based on capacity, configuration, power, packing and destination.

Apakah semua spesifikasi final?Are all specifications final?

Tidak. Data produk dari referensi digunakan sebagai informasi awal. Spesifikasi final dikonfirmasi dengan supplier sebelum order.No. Reference data is provided as initial information. Final specifications are confirmed with the supplier before order.

Bisa custom kapasitas?Can capacity be customized?

Untuk proyek tertentu dapat diajukan custom request. Hubungi sales dengan kebutuhan kapasitas dan aplikasi.Custom requests may be possible for selected projects. Contact sales with your required capacity and application.
